MEET THE ALL NEW

EP18K-Li

LITHIUM FORKLIFT

Check out our new 3,500 lb lift capacity lithium-powered forklift! This 3-wheel pneumatic forklift is agile and easily maneuverable in any warehouse environment. Plus, the lithium battery provides longer run times and requires zero maintenance, reducing operational costs.

Sales@TitanGreen.com

+1 (833) 476-5438

4X

Cycle-Life

21314 Lassen St. Chatsworth, CA

FORKLIFT FEATURES

BATTERY FEATURES

SPECIFICATIONS

FORKLIFT FEATURES

BATTERY FEATURES

10 Year Warranty

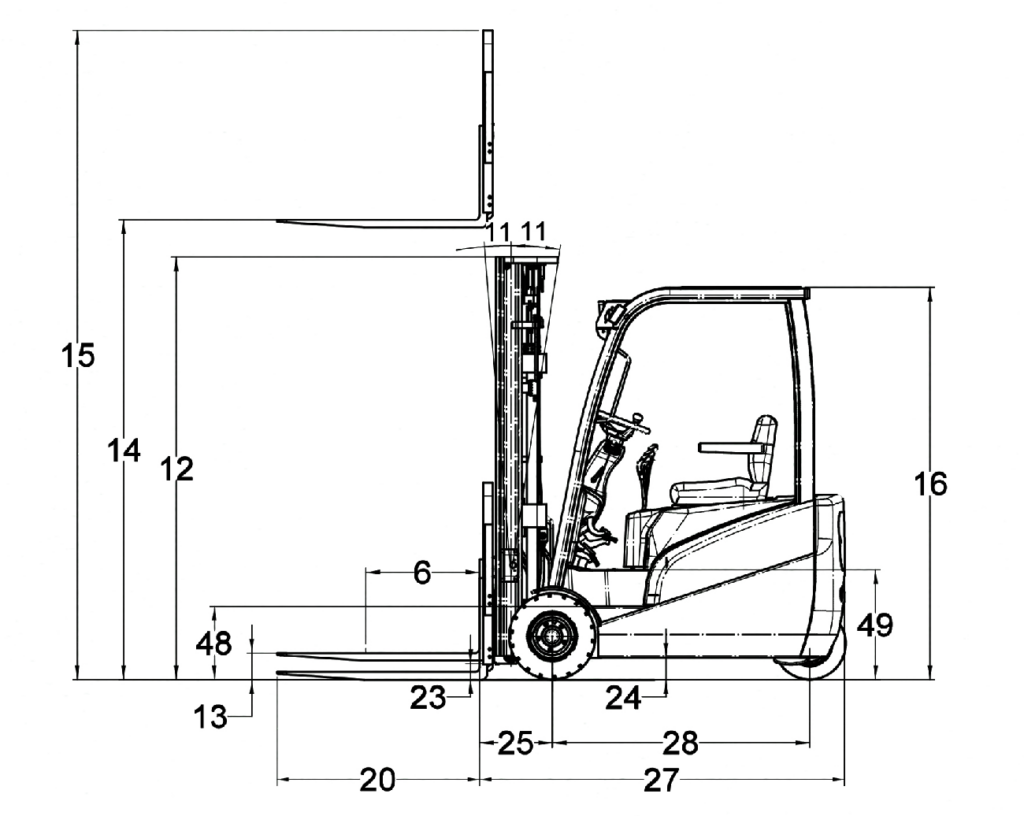

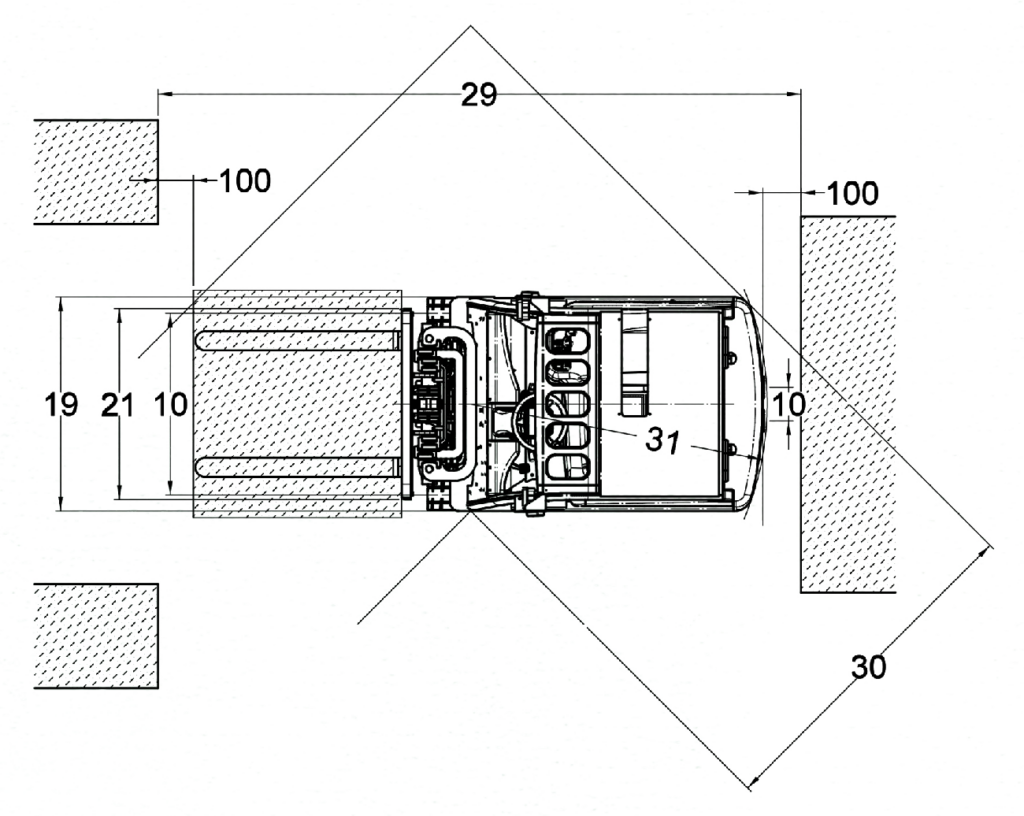

DIMENSIONS

CONTACT US for information

OVERVIEW

3,500 lbs

Lift Capacity

48V

LiFePO4 Battery

10 yr

Battery Warranty

3 Wheel

Pnematic Forklift

Introducing the EP18K-Li, our new 3,500 lb lift capacity lithium-powered forklift, a game-changer for warehouse operations. This cutting-edge forklift is equipped with state-of-the-art features that deliver exceptional performance, safety, and comfort to operators.

Built with a 3-wheel pneumatic design, this forklift is highly maneuverable, allowing it to easily navigate tight corners and narrow aisles. The ergonomic layout is centered around operator safety and comfort. Its 3-point entry access and spacious operator’s compartment provide ample room to work in comfort. The forklift’s mast visibility is industry-leading, allowing you to work with precision and accuracy.

The EP18K-Li’s safety features are top-notch, with a reinforced steel overhead guard, safety strobe lights, operator’s present seat switch, backup alarm, OHG light kit, and automatic brake hold. The triple-stage mast and cascade side shifter make handling heavy loads easy, while the 4-way hydraulic valve levers provide smooth and precise control.

Backed by a 12-month bumper-to-bumper warranty, 3-year powertrain warranty, and a 10-year battery warranty, the forklift’s reliability is unmatched. Its 350 Ah battery uses reliable LiFePO4 chemistry, ensuring long-lasting performance. The forklift also comes with an electric charging port and opportunity charger 480/3-phase, making it easy to charge in under 2 hours.

Submit an RFQ above and secure a TitanGreen EP18k-Li today!

EP18K-Li Warranty Download

MORE FEATURES

Design

Technology

Battery

Lithium LiPO4 Battery Charging System

480/3-phase Advanced Charger

With its powerful three-phase power supply, this charger delivers a high amount of energy to quickly charge forklift batteries. The charger features a power module that converts AC power to DC power, and a control module that manages the charging process to ensure safe and efficient charging.
Our forklift charger comes with a charging cable that connects the charger to the battery, making it easy to charge your forklift quickly and efficiently. The charger is also designed with safety features such as overcharge protection and short circuit protection, providing peace of mind and ensuring the longevity of your battery.

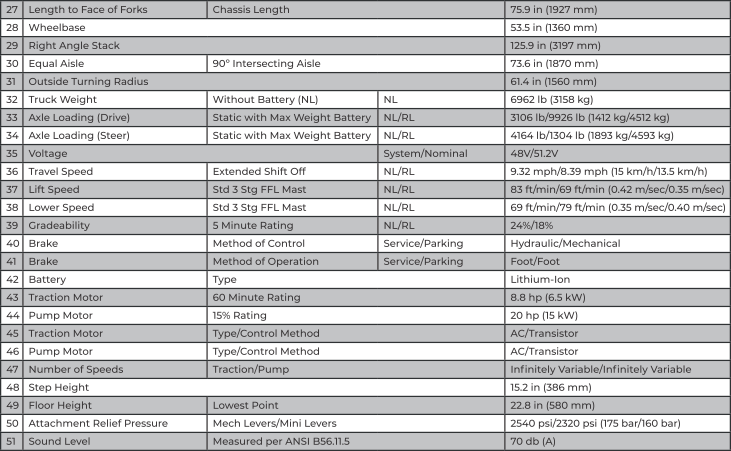

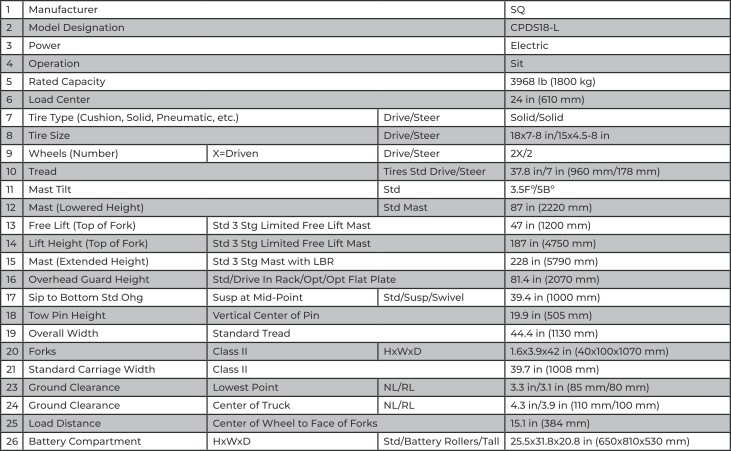

SPECIFICATIONS

1
Manufacturer
TitanGreen
2
Model Designation
EP18K-Li
3
Power
Electric
4
Operation
Sit
5
Rated Capacity
3968 lb (1800 kg)
6
Load Center
24 in (610 mm)
7
Tire Type (Cushion, Solid, Pneumatic, etc.)
Drive/Steer
Solid/Pneumatic
8
Tire Size
Drive/Steer
18x7-8 in/15x4.5-8 in
9
Wheels (Number)
X=Driven
Drive/Steer
2X/2
10
Tread
Mast Tilt
37.8 in/7 in (960 mm/178 mm)
11
Mast Tilt
Std
3.5Fº/5Bº
12
Mast (Lowered Height)
Std Mast
87 in (2220 mm)
13
Free Lift (Top of Fork)
Std 3 Stg Limited Free Lift Mast
47 in (1200 mm)
14
Lift Height (Top of Fork)
Std 3 Stg Limited Free Lift Mast
189 in (4750 mm)
15
Mast (Extended Height)
Std 3 Stg Mast with LBR
228 in (5790 mm)
16
Overhead Guard Height
Std/Drive In Rack/Opt/Opt Flat Plate
81.4 in (2070 mm)
17
Sip to Bottom Std Ohg
Susp at Mid-Point
Std/Susp/Swivel
39.4 in (1000 mm)
18
Tow Pin Height
Vertical Center of Pin
19.9 in (505 mm)
19
Overall Width
Standard Tread
44.4 in (1130 mm)
20
Forks
Class II
HxWxD
1.6x3.9x42 in (40x100x1070 mm)
21
Standard Carriage Width
Class II
39.7 in (1008 mm)
22
Ground Clearance
Lowest Point
NL/RL
3.3 in/3.1 in (85 mm/80 mm)
23
Ground Clearance
Center of Truck
NL/RL
4.3 in/3.9 in (110 mm/100 mm)
24
Load Distance
Center of Wheel to Face of Forks
15.1 in (384 mm)
25
Battery Compartment
HxWxD
Std/Battery Rollers/Tall
25.5x31.8x20.8 in (650x810x530 mm)
26
Length to Face of Forks
Chassis Length
75.9 in (1927 mm)
27
Wheelbase
53.5 in (1360 mm)
28
Right Angle Stack
125.9 in (3197 mm)
29
Equal Aisle
90º Intersecting Aisle
73.6 in (1870 mm)
30
Outside Turning Radius
61.4 in (1560 mm)
31
Truck Weight
Without Battery (NL)
NL
6962 lb (3158 kg)
32
Axle Loading (Drive)
Static with Max Weight Battery
NL/RL
3106 lb/9926 lb (1412 kg/4512 kg)
33
Axle Loading (Steer)
Static with Max Weight Battery
NL/RL
4164 lb/1304 lb (1893 kg/4593 kg)
34
Voltage
48V
35
Travel Speed
Extended Shift Off
NL/RL
9.32 mph/8.39 mph (15 km/h/13.5 km/h)
36
Lift Speed
Std 3 Stg FFL Mast
NL/RL
83 ft/min/69 ft/min (0.42 m/sec/0.35 m/sec)
37
Lower Speed
Std 3 Stg FFL Mast
NL/RL
69 ft/min/79 ft/min (0.35 m/sec/0.40 m/sec)
38
Gradeability
5 Minute Rating
NL/RL
24%/18%
39
Brake
Method of Control
Service/Parking
Hydraulic/Mechanical
40
Brake
Method of Operation
Service/Parking
Foot/Foot
41
Battery
Type
Lithium LiPO4
42
Traction Motor
60 Minute Rating
8.8 hp (6.5 kW)
43
Pump Motor
15% Rating
20 hp (15 kW)
44
Traction Motor
Type/Control Method
AC/Transistor
45
Pump Motor
Type/Control Method
AC/Transistor
46
Number of Speeds
Traction/Pump
Infinitely Variable/Infinitely Variable
47
Step Height
15.2 in (386 mm)
48
Floor Height
Lowest Point
22.8 in (580 mm)
49
Attachment Relief Pressure
Mech Levers/Mini Levers
2540 psi/2320 psi (175 bar/160 bar)
50
Sound Level
Measured per ANSI B56.11.5
70 db (A)

CHARGER SPECIFICATIONS

51
Model
80V 200A
Power Rating
16KW
52
Input Voltage
380 - 480V AC
Dimensions (HxWxD)
25.6x21x11.9 in (650x532x301 mm)
53
Frequency
50 - 60Hz
Wiring Method
480/3-Phase
54
Output Current (Peak)
200A
Connector Type
Euro 320A
