MEET THE ALL NEW

EP20K-Li

ELECTRIC FORKLIFT

CONTACT US for information

OVERVIEW

4,000 lbs

Lift Capacity

48V

LiFePO4 Battery

12 mo

Warranty

4 Wheel

Pnematic Forklift

Introducing the EP20K-Li, our new 4,000 lb lift capacity lithium-powered forklift, a game-changer for warehouse operations. This cutting-edge forklift is equipped with state-of-the-art features that deliver exceptional performance, safety, and comfort to operators.

Built with a 4-wheel pneumatic design, this forklift is highly maneuverable, allowing it to easily navigate tight corners and narrow aisles. The ergonomic layout is centered around operator safety and comfort. Its 3-point entry access and spacious operator’s compartment provide ample room to work in comfort. The forklift’s mast visibility is industry-leading, allowing you to work with precision and accuracy.

The EP20K-Li’s safety features are top-notch, with a reinforced steel overhead guard, safety strobe lights, operator’s present seat switch, backup alarm, OHG light kit, and automatic brake hold. The triple-stage mast and cascade side shifter make handling heavy loads easy, while the 4-way hydraulic valve levers provide smooth and precise control.

Backed by a 12-month bumper-to-bumper warranty and a 10-year battery warranty, the forklift’s reliability is unmatched. Its 356 Ah battery uses reliable LiFePO4 chemistry, ensuring long-lasting performance. The forklift also comes with an electric charging port and opportunity charger 480/3-phase, making it easy to charge in under 2 hours.

Submit an RFQ above and secure a TitanGreen EP20k-Li today!

MORE FEATURES

Design

Technology

Battery

Lithium-ion Battery Charging System

480/3-phase Advanced Charger

With its powerful three-phase power supply, this charger delivers a high amount of energy to quickly charge forklift batteries. The charger features a power module that converts AC power to DC power, and a control module that manages the charging process to ensure safe and efficient charging.
Our forklift charger comes with a charging cable that connects the charger to the battery, making it easy to charge your forklift quickly and efficiently. The charger is also designed with safety features such as overcharge protection and short circuit protection, providing peace of mind and ensuring the longevity of your battery.

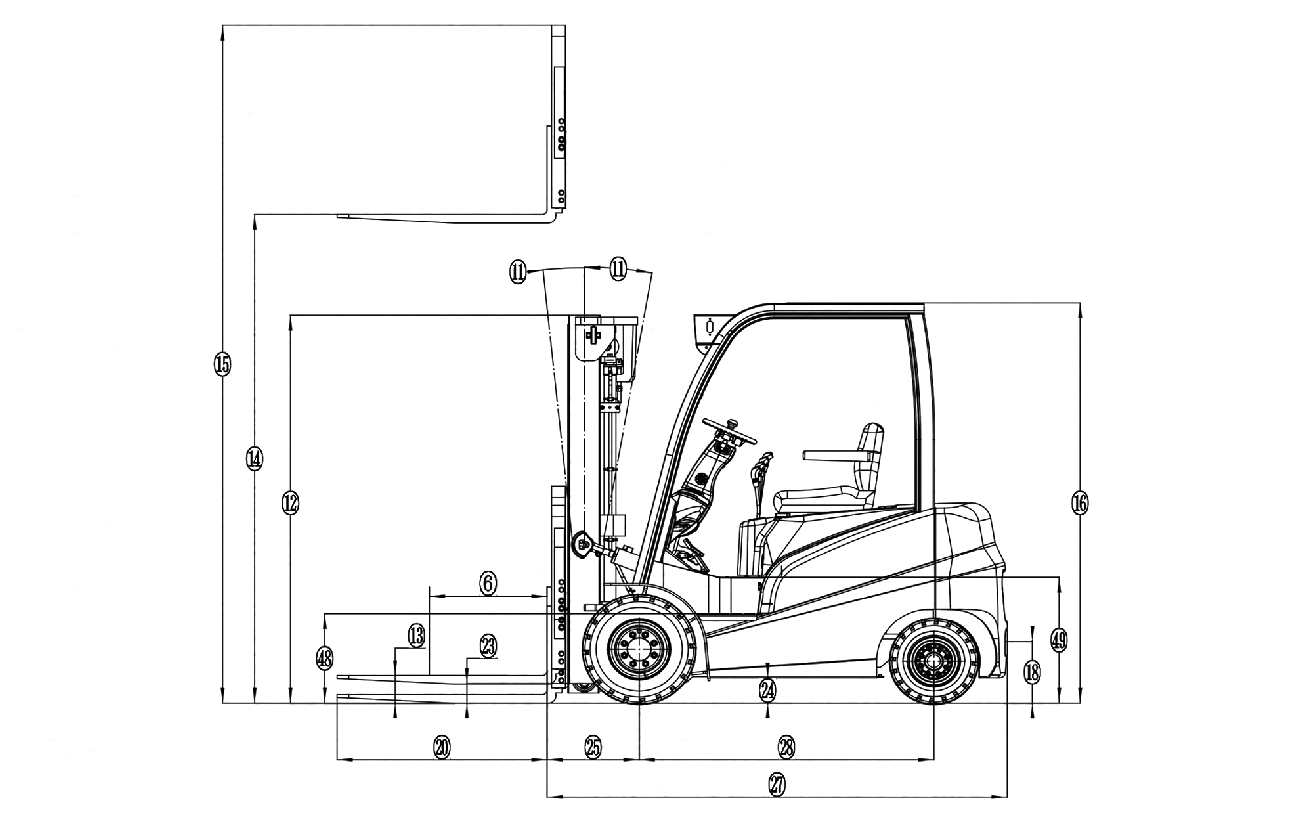

1
Manufacturer
SQ
2
Model Designation
CPDS20-L
3
Power
Electric
4
Operation
Sit
5
Rated Capacity
4409 lb (2000 kg)
6
Load Center
24 in (610 mm)
7
Tire Type (Cushion, Solid, Pneumatic, etc.)
Drive/Steer
Solid/Solid
8
Tire Size
Drive/Steer
23x9-10 in/18x7-8 in
9
Wheels (Number)
X=Driven
Drive/Steer
2X/2
10
Tread
Tires Std Drive/Steer
40.9 in/37.4 in (1040 mm/950 mm)
11
Mast Tilt
Std
6Fº/6Bº
12
Mast (Lowered Height)
Std Mast
80.31 in (2040 mm)
13
Free Lift (Top of Fork)
Std 3 Stg Limited Free Lift Mast
5 in (140 mm)
14
Lift Height (Top of Fork)
Std 3 Stg Limited Free Lift Mast
118.11 in (3000 mm)
15
Mast (Extended Height)
Std 3 Stg Mast with LBR
187 in (4750 mm)
16
Overhead Guard Height
Std/Drive In Rack/Opt/Opt Flat Plate
83.6 in (2125 mm)
17
Sip to Bottom Std Ohg
Susp at Mid-Point
Std/Susp/Swivel
38.5 in (980 mm)
18
Tow Pin Height
Vertical Center of Pin
12.8 in (325 mm)
19
Overall Width
Standard Tread
49.8 in (1265 mm)
20
Forks
Class II
HxWxD
1.8x4.7x42.1 in (45x120x1070 mm)
21
Standard Carriage Width
Class II
41.7 in (1060 mm)
22
Ground Clearance
Lowest Point
NL/RL
4.13 in/3.35 in (105 mm/85 mm
23
Ground Clearance
Center of Truck
NL/RL
5.51 in/4.72 in (140 mm/120 mm)
24
Load Distance
Center of Wheel to Face of Forks
18.3 in (464 mm)
25
Battery Compartment
HxWxD
Std/Battery Rollers/Tall
27.5x31.8x20.4 in (700x810x520 mm)
26
Length to Face of Forks
Chassis Length
90.8 in (2306 mm)
27
Wheelbase
59 in (1500 mm)
28

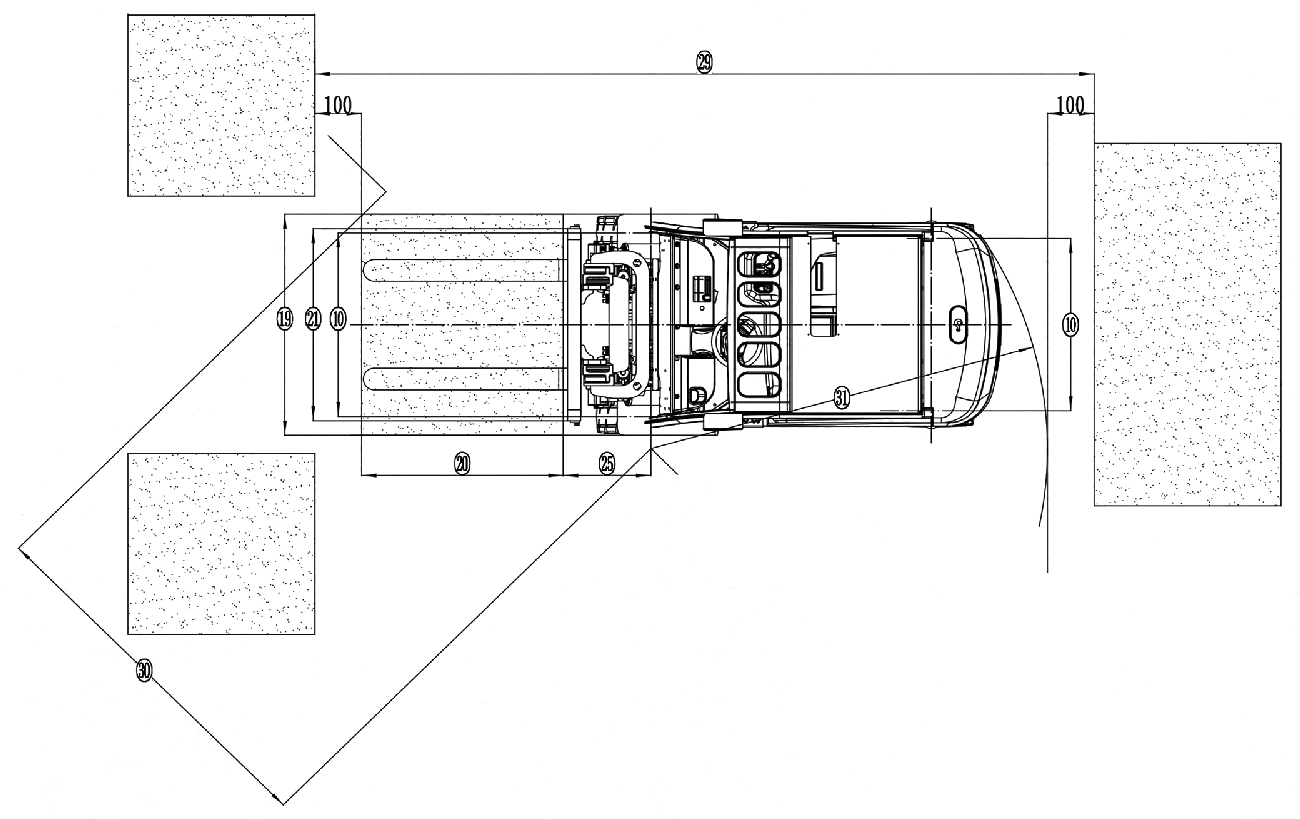

Right Angle Stack
154 in (3914 mm)
29
Equal Aisle
90º Intersecting Aisle
78 in (1983 mm)
30
Outside Turning Radius
80.7 in (2050 mm)
31
Truck Weight
Without Battery (NL)
NL
8333 lb (3780 kg)
32
Axle Loading (Drive)
Static with Max Weight Battery
NL/RL
4343 lb/11860 lb (1970 kg/5380 kg)
33
Axle Loading (Steer)
Static with Max Weight Battery
NL/RL
4872 lb/1763 lb (2210 kg/800 kg)
34
Voltage
System/Nominal
72V/76.8V
35
Travel Speed
Extended Shift Off
NL/RL
9.32 mph/8.39 mph (15 km/h/13.5 km/h)
36
Lift Speed
Std 3 Stg FFL Mast
NL/RL
84.6 ft/min/76.7 ft/min (0.43 m/sec/0.39 m/sec)
37
Lower Speedr
Std 3 Stg FFL Mast
NL/RL
64.9 ft/min/74.7 ft/min (0.33 m/sec/0.38 m/sec)
38
Gradeability
5 Minute Rating
NL/RL
22%/16%
39
Brake
Method of Control
Service/Parking
Hydraulic/Mechanical
40
Brake
Method of Operation
Service/Parking
Foot/Foot
41
Battery
Type
Lithium-Ion
42
Traction Motor
60 Minute Rating
10 hp (7.5 kW)
43
Pump Motor
15% Rating
13.4 hp (10 kW)
44
Traction Motor
Type/Control Method
SRM/Transistor
45
Pump Motor
Type/Control Method
SRM/Transistor
46
Number of Speeds
Traction/Pump
Infinitely Variable/Infinitely Variable
47
Step Height
18.5 in (470 mm)
48
Floor Height
Lowest Point
26 in (660 mm)
49
Attachment Relief Pressure
2320 psi (160 bar)
50
Sound Level
Measured per ANSI B56.11.5
65 db (A)

CHARGER SPECIFICATIONS

51
Input
380~480AC 50-60HZ
Input Current
40A Max
52
Item Name
Lithium Intelligent Charger
Power
20KVA Max
53
Model
80V 200A
Rated Output Voltage
60VDC~100VDC
54
Weight
35KG
Output Current
200A Max
55
Size
650*532*301mm
Rated Power Rating
16KW
56
Conversion Efficiency
>92%
Wiring Method
Three-Phase Four-Wire
